Amiga RGB to HDMI PiZero Adapter – Amiga 500 / Amiga 500+

Description

These have now been replaced by the CPLD version of the Amiga RGB to HDMI PiZero Adapter click the link below

https://www.retro32.com/product/amiga-rgb-to-hdmi-cpld-pizero-adapter-amiga-500-amiga-500

Yes, these are the V2!

Do you want HDMI output from your Amiga 500 / 500+ without using a crappy RGB to HDMI converter or expensive OSSC?

Please be aware that this is for the Amiga 500 / 500+ only. It will not work on the Amiga 600 or Amiga 1200.

We have the answer with this Amiga RGB to HDMI adapter powered by the humble Raspberry PiZero.

How does it work?

The RGBtoHDMI interface converts the “digital” RGB video signal from vintage computers like the BBC Micro or PC MDA/CGA/EGA to HDMI or DVI compatible with most modern TVs/Monitors. The interface comprises a Raspberry Pi Zero and a specially designed Hat containing a small CPLD. Custom firmware on the Raspberry Pi, in conjunction with the CPLD, is able to correctly sample each of the supported video modes to give a pixel-perfect rendition. The HDMI output is locked to the input so there are no frame drops, repeats or tears and it also has low lag of around 4 milliseconds (less than a quarter of a frame).

Please note that the HDMI output DOES NOT carry audio. You will still need to use the audio outputs on the rear of the Amiga.

What do I need

If you are just ordering the adapter you will need the following items

1 x Raspberry PiZero (with headers)
1 x MicroSD card compatible with the Raspberry PiZero
1 x Mini HDMI cable to HDMI cable

You do not need a power supply for the PiZero. Power is supplied through the GPIO pins that attach to the Amiga.

What does it include

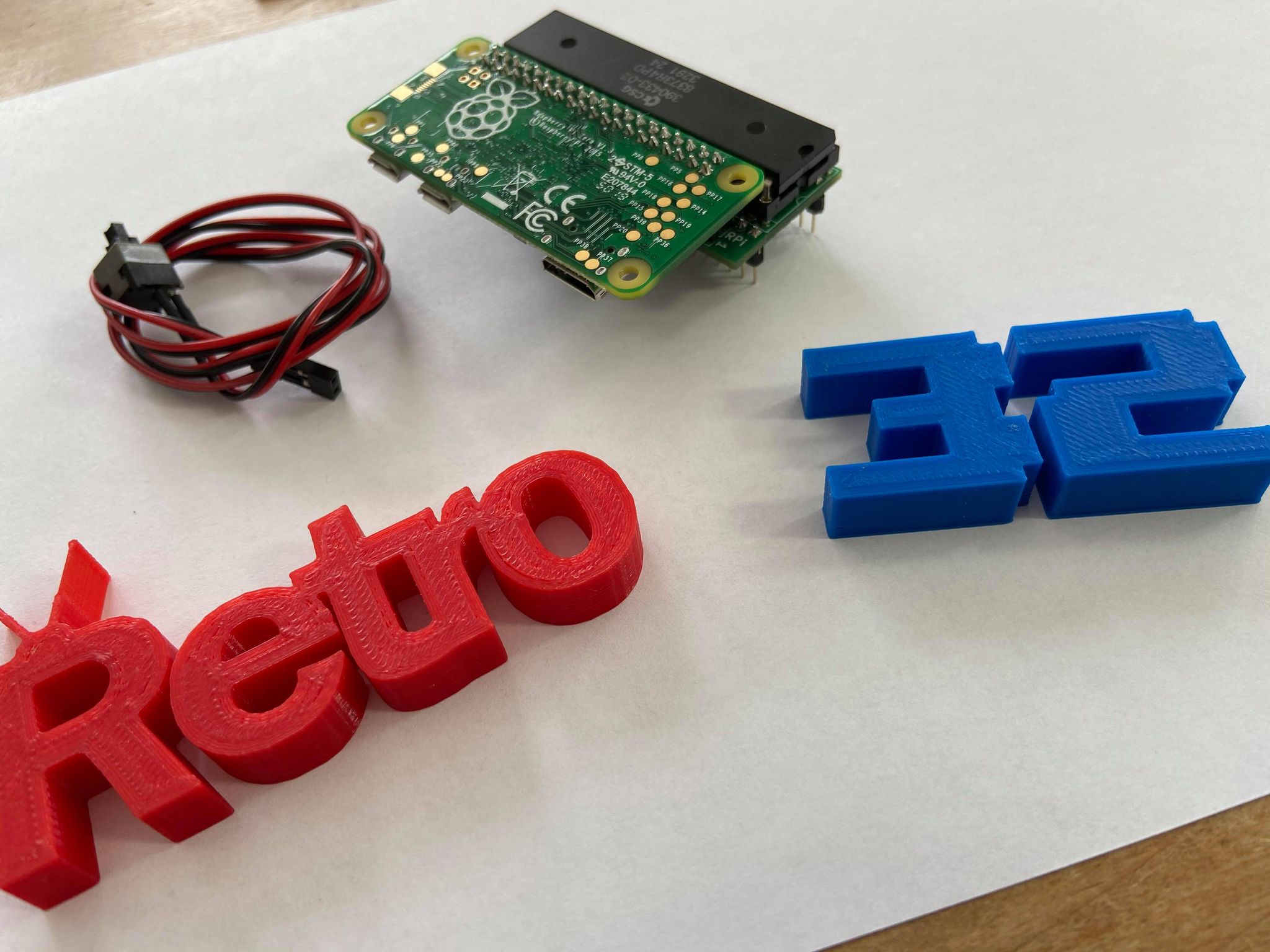

1 x Amiga RGB to HDMI PiZero Adapter – fully tested
1 x Email instruction on installation and use
1 x Control button / switch

We now offer the adapter and a pre-installed tested SD card. You will need to supply your own Pi Zero.

Complete Kit

Sorry, we’re struggling to get stock of Raspberry Pi Zeros so at present only the boards are available. Please contact us if you would like to pre-order a complete kit. (We currently have just 1 left in stock)

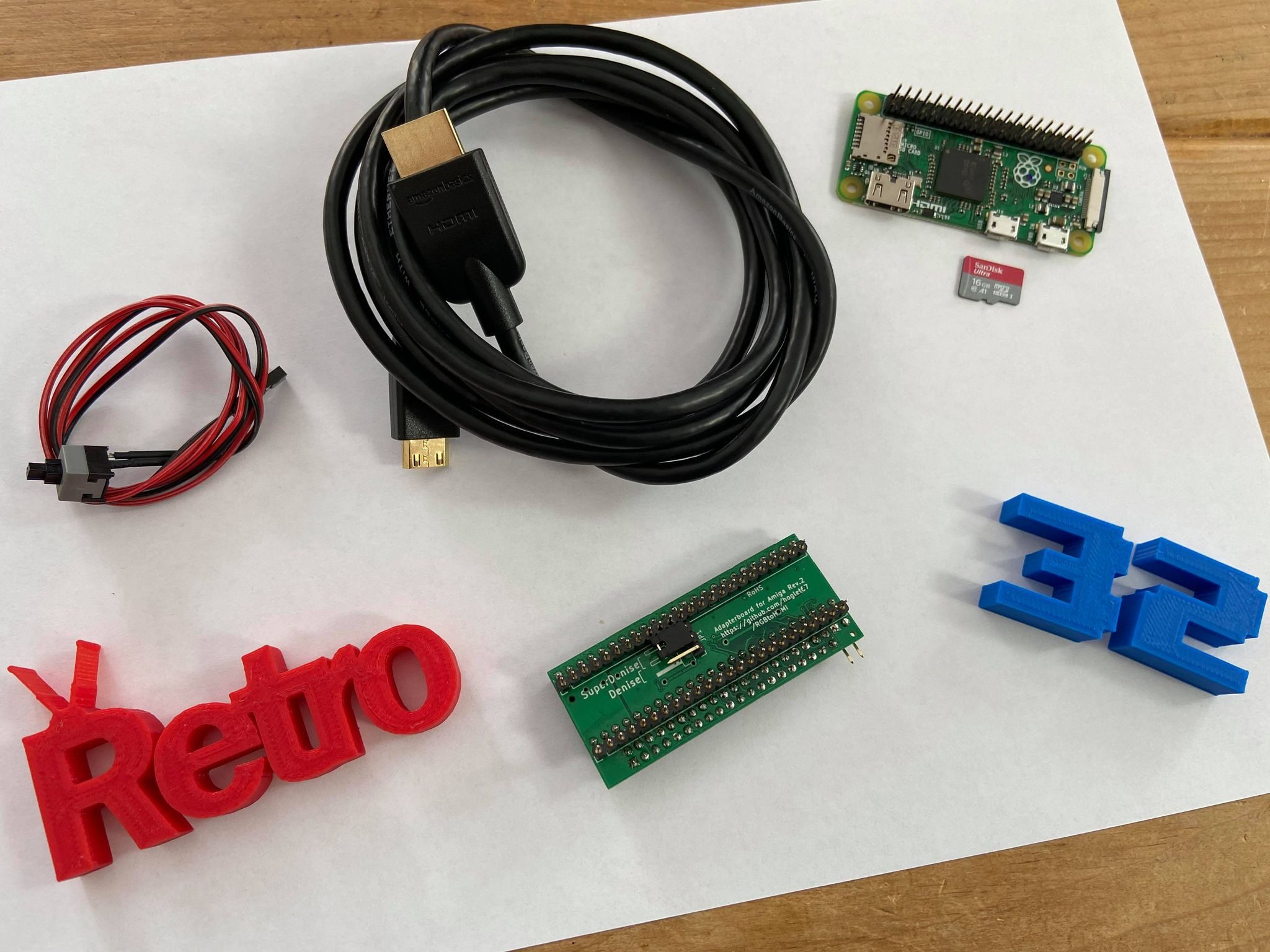

We also offer a complete kit, fully tested and loaded for the ultimate turn-key experience. This includes

1 x Amiga RGB to HDMI PiZero Adapter
1 x Control button / switch
1 x Raspberry PiZero (with headers)
1 x MicroSD (Sandisk 16GB Ultra) card compatible with the Raspberry PiZero – preinstalled with required software (latest version at point of sale)
1 x Mini HDMI cable to HDMI cable (1.8M)

Expansion Port Cover

We also offer a replacement Amiga 500 Expansion port cover with a hole pre-made to run your HDMI cable and button. These are offered with a 20% discount than if bought separately.

NOTE – We are NOT responsible for any damage to your Amiga or associated hardware by using this item. These will be tested before dispatch with photos/videos supplied. We will not accept returns of this item. Be aware that you must take care when removing the Amiga Denise chip from the motherboard. By purchasing this item you agree to these terms.

** Credits to Hoglet67 / C0pperdraggon and Ian B for the amazing work that’s been done on this project – You guys ROCK!**

Fitting Guide

We’ve had a lot of requests for a fitting guide so check out the following guide on our YouTube channel
